ORANGE-series Flash SSDs

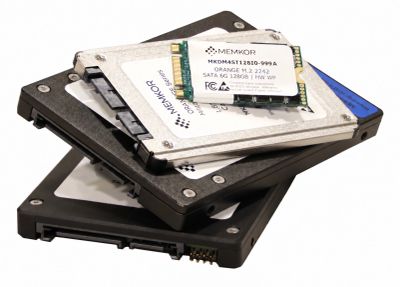

MEMKOR ORANGE-series consists of a broad range of SSD form factors, including 1.8”, 2.5” and 3.5” drives, as well as newer standards such as mSATA (MO-300B), M.2 (formerly NGFF), or special SSD in Chip form factor SSD. Available in SATA and PCIe/NVMe.


With SATA drives saturating the SATA III bandwidth of 600MB/s, PCIe/NVMe offers the most effective path to scale the performance up to 1,200MB/s and 200,000 IOps. Superior ruggedization of the ORANGE-series fulfills a wide range of deployments options in embedded applications, edge computing, and portable computers, desktops, or servers.


The latest generation MEMKOR ORANGE-series SATA and PCIe/NVMe models support  TCG Opal 2.0, TCG Enterprise, or FIPS 197 validated encryption engine with ATA command based encryption management. FIPS140-2 Level 2 validated models available in 2.5", U.2, and M.2. More info here.


MEMKOR ORANGE-series features also include Write Protect, the fastest Data Elimination functions (Crypto Erase, Fast Erase, and Purge) and are designed and built to meet the most stringent Commercial and Industrial/Defense environmental requirements. Conformal coating is standard on all the Industrial/Defense grade 1.8”, 2.5” and 3.5” form factor models.


MEMKOR ORANGE Series PATA drives utilize a Native PATA interface (no SATA-PATA bridge), ensuring maximum performance, lowest power consumption and maximum compatibility with the existing PATA systems.


A number of additional security features, performance and power consumption options are offered. TAA compliant. Contact MEMKOR for more details.


CAPACITY

250GB - 8TB


FORM FACTOR

2.5" SATA | U.2 PCIe/NVMe

2.5" PATA/IDE

1.8" SATA

1.8" PATA/IDE

M.2 SATA | PCIe/NVMe

mSATA


SECURITY FEATURES

Data-at-Rest | Self-Encrypting Drive (SED)

Data Elimination - Crypto Erase | Fast Erase | Secure Erase (Purge)

Hardware-based FIPS-197 Encryption

FIPS140-2 Level 2 validated*

TCG OPAL 2.0 | TCG Enterprise

Write Protect


RUGGEDIZATION

Operating Temps: -40C through +85C

Shock/Vibration: Up to 16.3gRMS


OPTIONAL

*FIPS140-2 Level-2 VALIDATED (cert. #3750)

HiVibe SATA connector*

Smiths NEBULA connector*

*for high vibration and insertion/removal cycles

SUPERIOR RUGGEDIZATION

SIMPLIFIED ARCHITECTURE

SIMPLIFIED ARCHITECTURE

SATA

Find out more

SIMPLIFIED ARCHITECTURE

SIMPLIFIED ARCHITECTURE

SIMPLIFIED ARCHITECTURE

PCIe / NVMe

Find out more

MAXIMUM COMPATIBILITY

SIMPLIFIED ARCHITECTURE

MAXIMUM COMPATIBILITY

PATA

Find out more

Data Sheets

Memkor-ORANGE-2.5" SATA (pdf)Download
Memkor-ORANGE-U.2 PCIe/NVMe (pdf)Download
Memkor-ORANGE-2.5" PATA (pdf)Download
Memkor-ORANGE-M.2 SATA/PCIe (pdf)Download
Memkor-ORANGE-mSATA (pdf)Download
Memkor-ORANGE-1.8" SATA (pdf)Download
Memkor-ORANGE-1.8" PATA (pdf)Download

Outstanding Reliability, Durability and Performance

Designed for demanding defense and aerospace defense applications. Built using the highest quality components and manufacturing. Tested with the most extensive and rigorous production testing. MEMKOR products provide unparalleled reliability, durability and performance.

Improved User Experience

Deployed mainly in embedded systems and data recorders, MEMKOR SSDs boost system performance, and improve user experience through virtually instant boot times, faster application response, lower power consumption, quieter operation, and longer deployment life.

We Are Here To Help

Today’s OEM, ODM and integrator markets have become increasingly complex and demanding. MEMKOR offers its Flash technology expertise with the mission to provide first-class Flash storage solutions and the best customer support.
