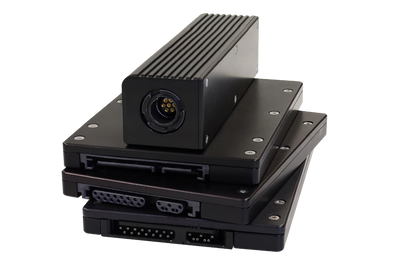

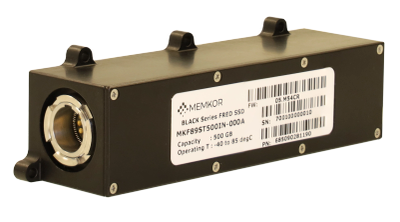

BLACK-series
EXTREME RUGGEDIZATION. PROVEN RELIABILITY.
Military-grade SSDs purpose-built for the harshest Defense + Aerospace environments.
-55°C to +90°C | 100G 11ms Shock | 30 gRMS Vibration
MEMKOR BLACK-series SSDs are engineered for applications demanding extreme environmental resilience. Advanced mechanical design, high-reliability components, and enhanced ruggedization enable reliable operation across extreme temperature, shock, and vibration environments.
Available with high-endurance NAND, rugged SATA connectors, conformal coating, and low-CTE underfill, BLACK can be configured for the environmental and lifecycle requirements of your platform.
Key Benefits:
- Extreme Ruggedization: -55°C to +90°C operation | Up to 100G, 11 ms shock | Up to 30 gRMS vibration
- High Endurance: Up to 60K P/E cycle NAND for write-intensive and long-life applications.
- Enhanced Reliability: Optional conformal coating, low-CTE underfill, and IPC Class 3 manufacturing/assembly options.
- Design Flexibility: Custom pinouts and configuration options simplify integration into application-specific platforms.
- Rugged Connectivity: Optional Amphenol HiVibe and Smiths NEBULA SATA connectors for high-vibration and high insertion/removal-cycle applications.
- Advanced Security: AES-256 hardware encryption, TCG Opal 2.0, Secure Erase, Write Protect, and available FIPS configurations.
- Thermal Management: Integrated thermal protection and throttling help maintain reliable operation across demanding temperature environments.
- Lifecycle Control: Optional Locked Bill-of-Materials (LockedBOM) and proactive obsolescence management simplify qualification and support long-term program continuity.
BUILT FOR HIGH-RELIABILITY APPLICATIONS
Available with PCBs manufactured to IPC-6012 Class 3 and assemblies built to IPC-A-610 Class 3 requirements for high-reliability Defense + Aerospace applications.
LOCKED BOM. LONG-TERM SUPPORT.
MEMKOR Locked BOM and obsolescence management programs provide configuration control, simplify qualification, and support long program lifecycles.
TESTED BEYOND THE SPEC
Every BLACK Series production unit undergoes extended-temperature testing and 12–48 hours of burn-in at MEMKOR headquarters in Scottsdale, Arizona before it ships.
Contact MEMKOR for configuration guidance and application-specific support.
Technical Specifications
FORM FACTOR
- 2.5" SATA
- FRED
CAPACITY
- 2.5" SATA
- Up to 2TB 3K PEC
- Up to 640GB 60K PEC
- FRED
- Up to 4TB 3K PEC
INTERFACES
- SATA I, II, and III
- PCIe Gen3, PCIe Gen4
SECURITY + DATA PROTECTION
- Hardware-based AES-256 encryption with TCG OPAL 2.0
- Data-at-Rest | Self-Encrypting Drive (SED)
- Data Elimination: Crypto Erase | Fast Erase | Secure Erase (Purge)
- Hardware + Software Write Protect
- Hardware + Software Sudden Power Loss Protection
- Optional: Designed to meet FIPS140-3
HIGH WRITE ENDURANCE
- NAND options up to 60K P/E cycles
RUGGEDIZATION
- Operating Temps: up to -55C through +90C
- Shock/Vibration: Up to 30gRMS and 100G 11ms shock
- Optional rugged SATA connector
DESIGN FLEXIBILITY
- Custom pinouts available
OPTIONAL
- Conformal Coating
- HiVibe SATA rugged SATA connector*
- Smiths NEBULA rugged SATA connector*
- FIPS140-2 Level-2 VALIDATED (cert. #3750)
- Designed to meet FIPS140-3
*for operation in high vibration and high insertion/removal cycles
